Lifting clamp Heavy-duty Vertical Lifting 1-8 Tonnes/2200-17636 Pounds Working Load Industrial Steel Plate Clamp Fixing device(8t)

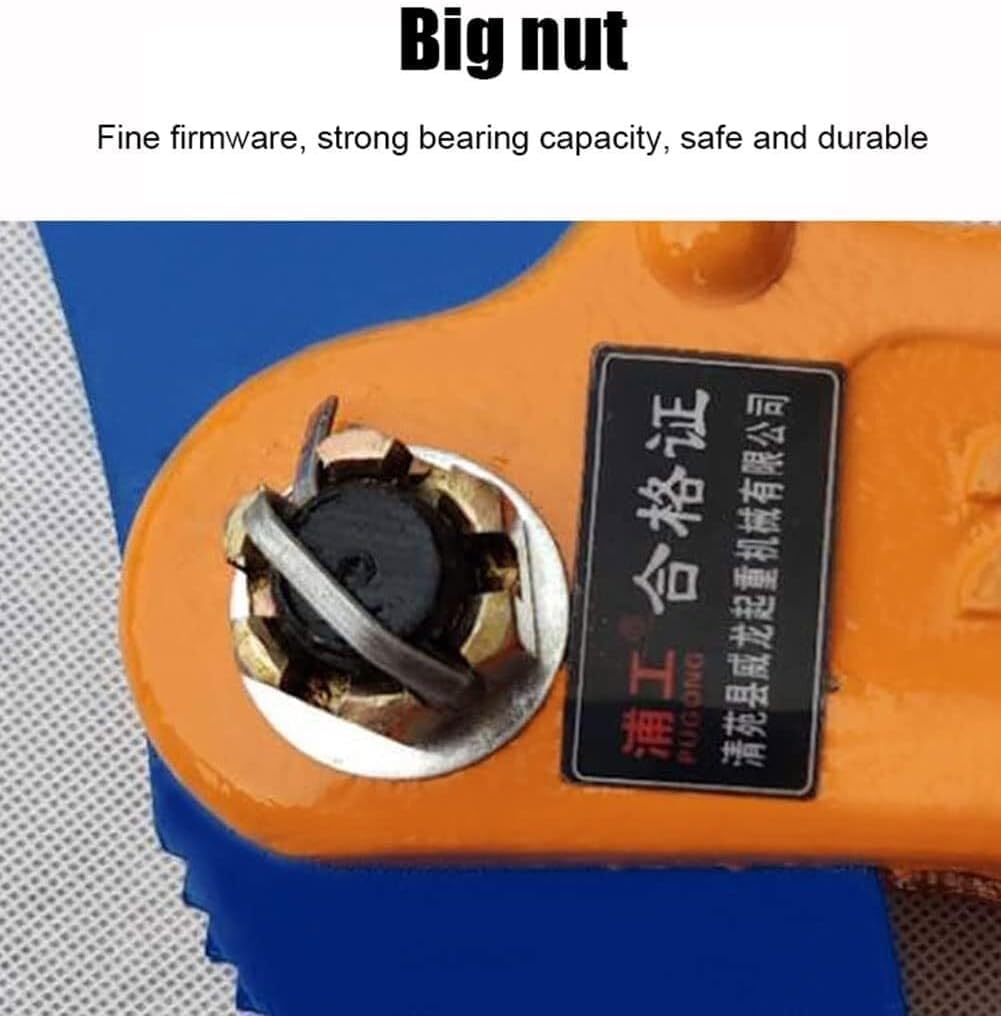

Specifications: Material: Low-carbon alloy steel Rated lifting capacity: 1–8 tonnes (2,200–17,636 pounds) Opening range: 1 tonne/0–20 mm, 2 tonnes/0–30 mm, 3.2 tonnes/0–35 mm, 5 tonnes/0–50 mm, 8 tonnes/0–60 mm.Self-weight: 5.5 kg, 7.5 kg, 10 kg, 17 kg, 26 kg Application: Suitable for heavy-duty lifting of steel plates and steel structures Notes: 1. Suspension and suspension operations must be performed by qualified personnel.2. Use within the permitted load capacity and thickness range. 3. Do not exceed the maximum speed during operation and maintain the maximum speed when stopping. 4. To prevent overloading, two hooks may be used. 5. Inspect thoroughly before use. Wear-resistant hook: The hook body is made of thick, wear-resistant material, ensuring durability and resistance to breakage. Alloy steel gears: Forged at high temperatures into compact steel plates, preventing slippage and enhancing safety. Integral forging: Forged as a single piece without welding, offering a high safety factor and superior lifting performance.

• HEAVY DUTY STEEL STRUCTURE: The plate lifting fixture is forged from high quality and resilient low carbon alloy steel, the one-piece casting is strong and resilient , able to vertically lift heavy duty plates that weigh up to 2200~17636 Lbs!
• FLEXIBLE CLAMP CAPACITY: industrial lifting clamps are optional with large load capacity of 1~8 tons (2200~17636 lbs), opening range: 1t/0~20mm, 2t/0~30mm, 3.2t/0~35mm, 5t/0~50mm, 8t/0~60mm.
• SAFETY: With powerful clamping jaws, the vertical clamp can tightly lock steel plates of different thicknesses, which ensures that the clamps will not slip when lifting or lowering the load, Check before use, do not exceed the working load limit, avoid shock load
• WIDE APPLICATION: It is suitable for heavy lifting or transportation of steel plates and metal sheets, It can be used for steel structure installation, steel market, machine processing, steel plate welding, cutting, and handling.
• EASY TO USE: Just pull the ring to open the fixture, loosen the jaw by the hook, clamp the steel plate into the opening, and then pull back the spring to lock.
